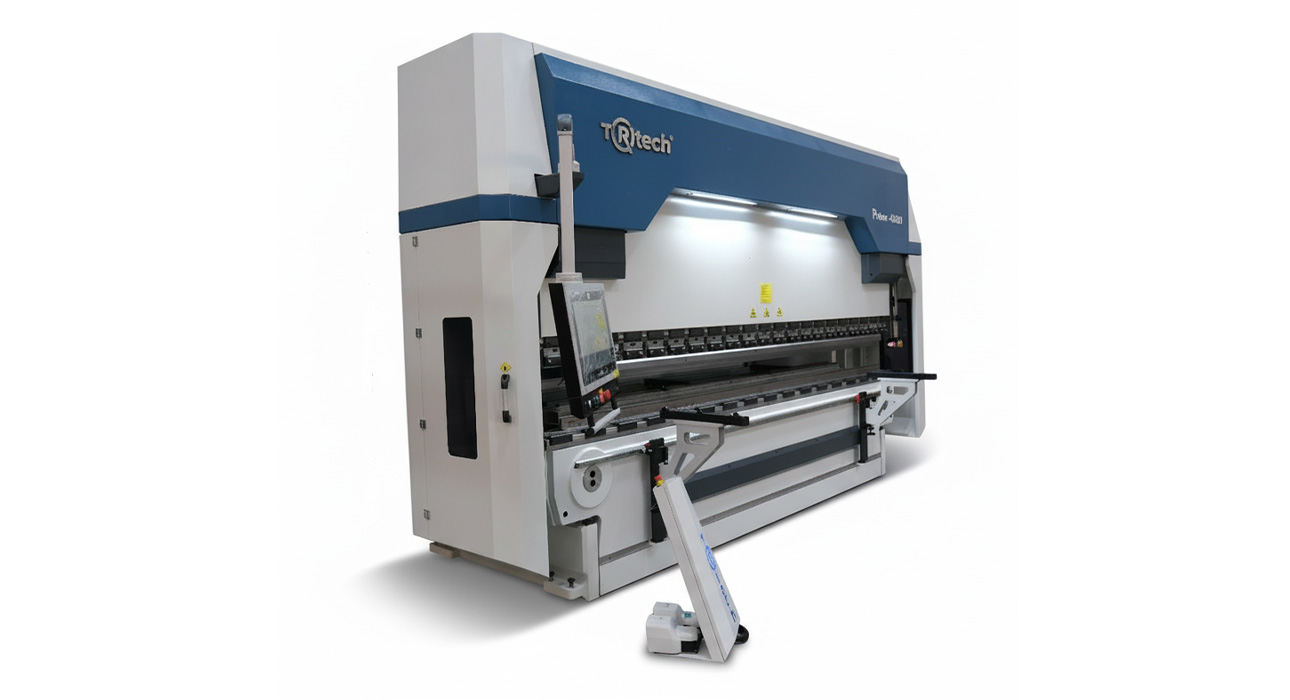

TRtech Fortis-31175CNC press brake
- Force
- 175 t
- Bending length
- 3100 mm
- Number of axes
- 4
- Ram stroke
- 265 mm
The TRtech Fortis-31175 is a 175 t Fortis-series press brake for parts up to 3,100 mm. The beam encoders sit on C-shaped brackets on the lower beam, so upright deformation under load does not affect the angle along the part. Cybelec Touch 8 CNC, 265 mm ram stroke, 490 mm daylight, 410 mm throat, 2,600 mm between columns, 18.5 kW, 9,960 kg. The bend angle and inside radius depend on the die and the material; we calculate them from your drawing.
| Brand | TRtech |
| Category | Press brakes · CNC press brakes |
| Working area | |
| Bending length | 3100 mm |
| Distance between columns | 2600 mm |
| Throat depth | 410 mm |
| Daylight | 490 mm |
| Table height | 900 mm |
| Ram stroke | 265 mm |
| Drive and output | |
| Force | 175 t |
| Main motor | 18.5 kW |
| Control and accuracy | |
| Number of axes | 4 (2 back-gauge axes) |
| Control | Cybelec Touch 8 |
| Crowning | Motorized hydraulic |
| Positioning accuracy | ±0.01 mm |
| Dimensions and power supply | |
| Weight | 9960 kg |
