LUNA Altair is the widest range by size. The LUNA Altair 6140A and 6150A have a 400 and 500 mm swing over bed, a 52 mm spindle bore and 11–1600 rpm; the 6140B/A and 6150B/A versions have an 80 mm bore. Next come 630, 800 and 940 mm swings (Altair 6163, 6180, 6194 and their gap-bed 62xx versions) with a 104–140 mm spindle bore and up to 10,000 mm between centers. The heaviest, the LUNA Altair 61100–61160, have a 1000–1600 mm swing, 22 kW and 3.15–315 rpm — for large shafts, discs and flanges.

Weiler makes German precision lathes for toolrooms, repair and training, with accuracy to DIN 8605. The compact Primus and Praktikant have a 280–320 mm swing and up to 5000 rpm, the Condor VCPlus 360 mm, the Commodor 180 and 230 380 and 475 mm with a 56 mm spindle bore, and the DA 210 and DA 260 435 and 535 mm and up to 2000 mm between centers. The version sets the control: the Weiler Commodor 180 GSD has an 18-speed mechanical gearbox, VCD versions have stepless speed and a digital readout, and VCPlus versions add stepless feed. The Weiler C30 and C50 are servo-conventional: servo drives move the axes and the machine runs some operations as simple cycles.

The Seiger SLZ 300 K and SLZ 420 K are conventional lathes with a 300 and 430 mm swing, up to 2000 mm between centers and a 40/55 or 80/93 mm spindle bore (the larger one is an option). The Seiger SLZ 300 SK and SLZ 420 SK are servo-conventional versions with a Heidenhain 620 control.

If your parts repeat, look at cycle-controlled lathes; for batches, CNC lathes. How to compare lathes is covered on the lathes.

Universal lathes in the catalog

Model	Swing over bed	Between centers	Spindle bore	Speed	Power
LUNA Altair 6140A	400 mm	650 / 900 / 1400 / 1900 mm	52 mm	11–1600 rpm	7.5 kW
LUNA Altair 6150A	500 mm	900 / 1400 / 1900 mm	52 mm	11–1600 rpm	7.5 kW
Weiler Primus VCD	280 mm	500 mm	—	30–4000 rpm	4 kW
LUNA Altair 6140B/A	400 mm	900 / 1400 / 1900 mm	80 mm	10–1400 rpm	7.5 kW
Seiger SLZ 300 K	300 mm	750 mm	40/55 (option) mm	1–3000 rpm	11.5 kW
LUNA Altair 6150B/A	500 mm	900 / 1400 / 1900 mm	80 mm	10–1400 rpm	7.5 kW
Weiler Praktikant GSD	320 mm	650 mm	—	48–2500 rpm	2.6/3.1 kW
LUNA Altair 6163	630 mm	1000 / 1500 / 2000 / 3000 / 4000 mm	104 mm	7.5–1000 rpm	11 kW
Seiger SLZ 300 SK	300 mm	750 mm	40/55 (option) mm	1–3000 rpm	11.5 kW

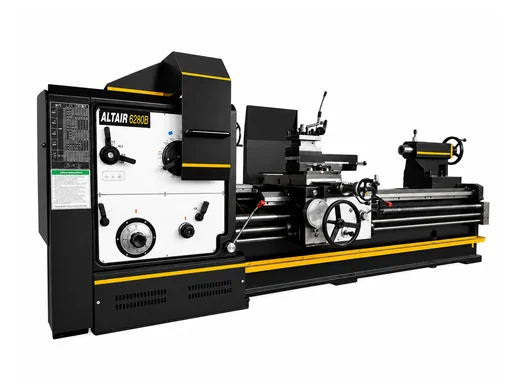

LUNA Altair 6263	630 mm	1000 / 1500 / 2000 / 3000 / 4000 mm	104 mm	7.5–1000 rpm	11 kW
Weiler Praktikant VCPlus	320 mm	650 mm	—	25–5000 rpm	8 kW
LUNA Altair 6180	800 mm	1500 / 2000 / 3000 / 4000 / 5000 / 6000 / 8000 / 10000 mm	104/140 mm	5.4–720 rpm	11 kW
Seiger SLZ 420 K	430 mm	1000–2000 mm	80/93 (option) mm	1–3000 rpm	11/20 kW
LUNA Altair 6280	800 mm	1500 / 2000 / 3000 / 4000 / 5000 / 6000 / 8000 / 10000 mm	104/140 mm	5.4–720 rpm	11 kW
Weiler Condor VCPlus	360 mm	800 mm	—	25–4000 rpm	10.5 kW
LUNA Altair 6194	940 mm	1000 / 1500 / 2000 / 3000 / 4000 mm	104 mm	6–800 rpm	11 kW
Seiger SLZ 420 SK	430 mm	1000–2000 mm	80/93 (option) mm	1–3000 rpm	11/20 kW
LUNA Altair 6294	940 mm	1000 / 1500 / 2000 / 3000 / 4000 mm	104 mm	6–800 rpm	11 kW
Weiler DA 210	435 mm	1000–1500 mm	—	44–2000 rpm	5.5 kW
LUNA Altair 61100	1000 mm	1500 / 3000 / 5000 / 6000 / 8000 mm	130 mm	3.15–315 rpm	22 kW
Weiler DA 260	535 mm	1000–2000 mm	—	33–1500 rpm	7.5 kW
LUNA Altair 61125	1250 mm	1500 / 3000 / 5000 / 6000 / 8000 mm	130 mm	3.15–315 rpm	22 kW
Weiler DA 210 AC	435 mm	1000–1500 mm	—	20–2500 rpm	10.5 kW
LUNA Altair 61140	1400 mm	1500 / 3000 / 5000 / 6000 / 8000 mm	130 mm	3.15–315 rpm	22 kW
Weiler DA 260 AC	535 mm	1000–2000 mm	—	20–2500 rpm	10.5 kW
LUNA Altair 61160	1600 mm	1500 / 3000 / 5000 / 6000 / 8000 mm	130 mm	3.15–315 rpm	22 kW
Weiler C30	330 mm	750 mm	—	1–4500 rpm	9/7 kW
Weiler C50	570 mm	1000–2000 mm	—	1–2500 rpm	15/12 kW
Weiler Primus VCPlus	280 mm	500 mm	43 mm	25–5000 rpm	5.5 kW
Weiler Praktikant VCD	320 mm	650 mm	43 mm	30–4000 rpm	6 kW
Weiler Commodor 180 GSD	380 mm	1000 mm	56 mm	25–2000 rpm	2.2/4.4 kW
Weiler Commodor 180 VCD	380 mm	1000 mm	56 mm	25–2000 rpm	7.5 kW
Weiler Commodor 230 VCD	475 mm	1000 mm	56 mm	25–2000 rpm	11 kW

Questions and answers

What is the difference between the LUNA Altair 6163 and 6263?

The 62xx models have a gap in the bed next to the chuck: a removable gap piece makes room for a short part of a larger diameter than the swing over bed allows. The other catalog figures are the same; the swing over the gap is confirmed in the technical proposal.

Which lathe replaces a 16K20 or 1K62?

The 16K20 and 1K62 have a 400 mm swing over bed, the same as the LUNA Altair 6140A and 6140B/A. If bar larger than 52 mm is fed through the spindle, take the 6140B/A with an 80 mm bore. The distance between centers is 650, 900, 1400 or 1900 mm (from 900 mm on the 6140B/A). The steps and checks are covered in Replacing a 16K20, 1K62 or 1M63 lathe.

What is a servo-conventional lathe?

A universal lathe whose axes are moved by servo drives instead of a mechanical feed gearbox. The operator uses electronic handwheels as on a conventional lathe, and sets feeds and thread pitches on the control. In this section these are the Weiler C30 and C50 and the Seiger SLZ 300 SK and SLZ 420 SK.

Not sure which model fits?

Send your part parameters — we'll select and quote.
